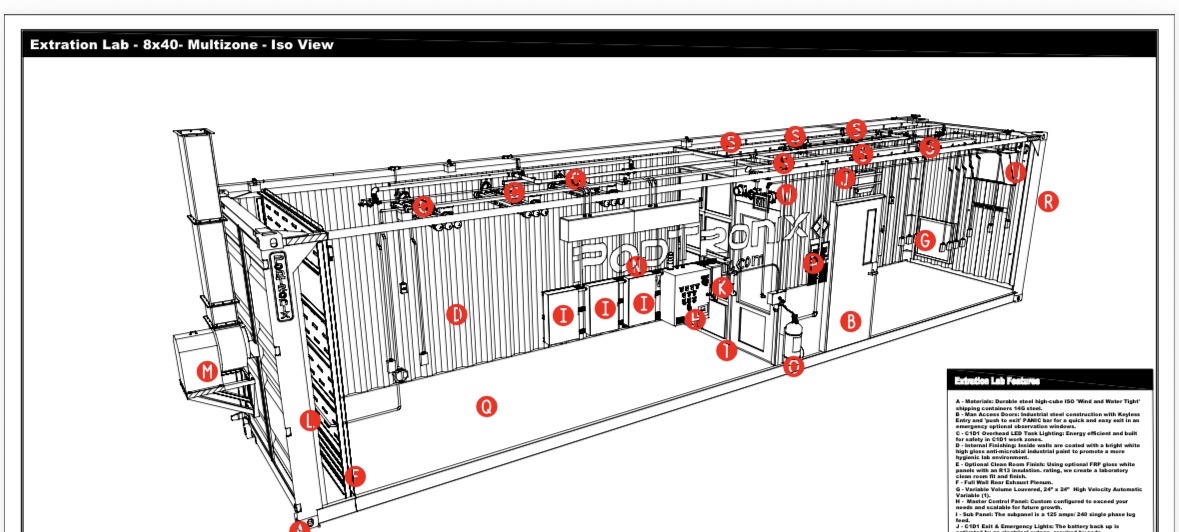

C1D1 Modular Extraction Pod (Multi-Zone)

Construction: Container is constructed out of 14Ga Steel. Exceeds 1 Hour fire wall.

Size: 8′ wide x 9’6″ tall x 44′ deep

Lights: (3) Explosion Proof 3-Tube LED Light Fixture in C1D1 zone

(6) LED Lights

Mandoor: (2) Man access doors with panic bar and Vent Latch on door

Electrical Panel: 125amp panel w 3 breakers

Flooring: “White Cliff” High Traffic Grade Linoleum flooring

Multi-Zone Air Wall Partition: (1) Partition to separate the Explosion Proof C1D1 zone (extraction equipment/pump) from the open type zone (Pre- and Post-Processing) where you use stills, ovens, and all non-classified equipment. (1) Access Door

Exhaust System: (1) Work Station “Evac-Air” C1D1 AMCA Cert Exhaust Fan, Two speed system.

Operation mode: 800-1200cfm, Alarm Mode: 20% LFL 4,000cfm

HVAC: EUBANK System for a 8×40 foot long single unit. We keep things cool when it really counts. The world’s most energy efficient wall-mounted air conditioner features a Star rated capacity compressor for increased efficiency, quieter operation and improved reliability. Simple thermostatic control seamlessly stages the compressor and indoor airflow rate between high and low capacity operations without cycling the compressor to maximize comfort, humidity control, energy efficiency and overall reduction in compressor cycling for improved system life. Factory or field installed accessories are available to meet specific job requirements.

Air Flow: (1) High Velocity wall shutter with intake filter media

UL Listed Controls and Control Panel: Control Panel and Remote Status Beacon 220v/240v/480v 1 or 3 phase power

Gas Sensor: (1) Hydrocarbon Gas sensor next to the exhaust system 4″ off the floor. Monitors: Ethanol, Butane, Propane, Pentane, Hexane, and heptane

Eyewash station: (1) Eyewash stations are required in all extraction zones.

Fire Suppression: Dry Chemical fire suppression system installed. Activation and permit required.

Exit signs and Emergency Lighting: (1) Battery backup Exit emergency lighting and exit signs. (1) C1D1 Battery backup Exit emergency lighting and exit signs.

Engineering APPROVED: California Engineering MEP wet stamp for compliance of codeRQ-0124
