C1D1 Modular Extraction Pod (Multi-Zone)

This PodTronix ProXtracts Multi-Zone Enclosure is a fully integrated hazardous-location room system designed and engineered to meet or exceed all major U.S. fire, electrical, and mechanical codes for hydrocarbon processing environments.

The system consists of three independent but integrated C1D1 rooms, each purpose-built with dedicated ventilation, safety monitoring, and UL-listed control infrastructure. The enclosure is constructed using double-wall insulated steel panels, industrial ventilation systems, and redundant life-safety components, making it suitable for high-compliance extraction facilities.

This unit was engineered for isobutane-based hydrocarbon environments, with calibrated gas detection and purge airflow designed to evacuate gases near floor level, where hydrocarbons accumulate.

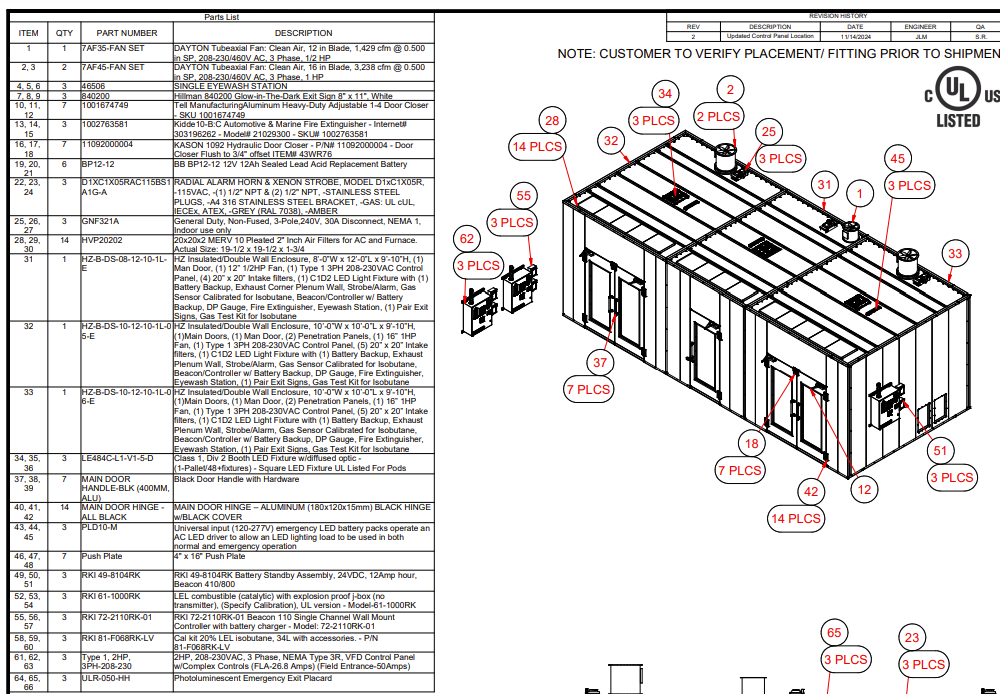

System Configuration (Per Drawings)
Zones Included

Extraction Lab

Extraction / Post-Process Lab

Off-Gassing Room

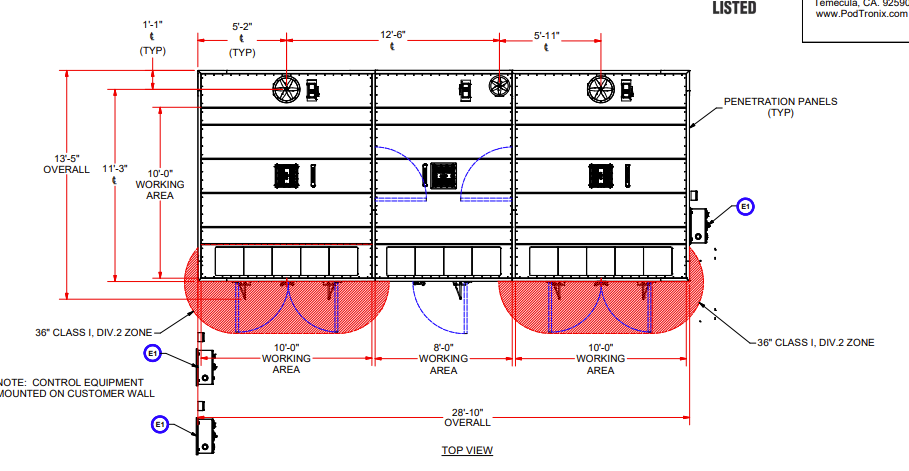

Overall Dimensions

Overall Footprint: approx. 13′-5″ W × 31′-1″ D × 11′-5″ H

Working Areas:

(2) rooms at 10′ × 10′ × 9′-10″

(1) room at 8′ × 12′ × 9′-10″

Construction Details

Walls: 2″ double-wall 20-gauge insulated steel panels, tongue-and-groove assembly

Ceiling: 18-gauge steel panels

Finish: Bright white powder-coated interior and exterior

Floor Mounting: Floor rails with 3/8″ × 3″ anchor bolts every 24″ (or per local code)

Ventilation & Airflow

Fans:

(1) 12″ ½-HP tubeaxial fan (off-gassing room)

(2) 16″ 1-HP tubeaxial fans (extraction zones)

Base Airflow: up to 1,619 CFM

Purge Airflow: up to 3,238 CFM

Max Static Pressure: ½″ W.C.

Design: Airflow engineered to remove hydrocarbons at floor level

Electrical & Controls

Power: 208–240V, 3-Phase

Control Panels:

UL-listed VFD panels controlling exhaust speed

NEMA Type 3R enclosures

FLA: approx. 26.8 Amps

Lighting:

C1D2 LED fixtures with battery backup

Emergency lighting packs

Safety & Monitoring Systems

Gas Detection:

(3) RKI LEL gas sensors calibrated for isobutane

Alarms:

C1D1 alarm horn & xenon strobe units (inside enclosure)

Battery Backup:

Gas detection & lighting systems

Emergency Equipment:

Fire extinguishers

Eyewash stations

Glow-in-the-dark exit signage

Emergency exit placards

Additional: Differential pressure gauges, beacon controllers, gas test kits

Compliance

Designed and engineered to comply with or exceed:

UL 1389 (2021)

UL 2755

NFPA 1, 33, 70 (NEC), 101, 496

IBC / IFC / IMC (2021)

Fire suppression system not included (to be provided by local licensed contractor).

RQ-0124
